SearchView below ActionBar/Toolbar

 In some applications, they have a widget below Action Bar title like a Search View, the worth mentioning here that it make us feel that the View seem belongs to the Action Bar (because they look like in one block)! Through this post, I will present the way to make a layout like this:



Prerequisites

    We should use Toolbar as an Action Bar, so please use a "No Action Bar" theme:

styles.xml

<resources>

    <!-- Base application theme. -->
    <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
        <!-- Customize your theme here. -->
        <item name="colorPrimary">@color/colorPrimary</item>
        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
        <item name="colorAccent">@color/colorAccent</item>
    </style>

</resources>

Building layout

    In this sample layout, I put a SearchView below Toolbar:

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <android.support.v7.widget.Toolbar
        android:id="@+id/toolbar"
        android:layout_width="match_parent"
        android:layout_height="?attr/actionBarSize"
        android:background="@color/colorPrimary"
        app:popupTheme="@style/ThemeOverlay.AppCompat.Light"
        app:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" />

    <RelativeLayout
        android:id="@+id/search_layout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@+id/toolbar"
        android:background="@color/colorPrimary"
        android:padding="@dimen/activity_horizontal_margin">

        <android.support.v7.widget.SearchView
            android:id="@+id/search_view"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:background="@drawable/corners"
            app:queryHint="Type something..." />
    </RelativeLayout>

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_below="@id/search_layout"
        android:padding="@dimen/activity_horizontal_margin"
        android:text="@string/short_text" />

</RelativeLayout>

    The important note here is you must set SearchView background same as Toolbar's. For this layout, the background color is colorPrimary. In programmatically code, set Toolbar as Action Bar and locating Options menu like another app:

MainActivity.java

package info.devexchanges.searchbarbelowtoolbar;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.support.v7.widget.Toolbar;
import android.view.Menu;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        Toolbar toolbar = (Toolbar)findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main, menu);
        return super.onCreateOptionsMenu(menu);
    }
}



More complicated layout

    With this style, we can realize that "the Action Bar region" take a large area in the display. It's not a good design when the main content is much complicated (for example, the main content can be scrolled). So, in this case, we can hide the Toolbar when scrolling the screen, our UX maybe better. In order to making this effect, follow these step:

• Set the root layout is CoordinatorLayout.
• Put Toolbar into AppBarLayout.
• Set app:layout_scrollFlags="scroll|enterAlways" for the Toolbar, it will disappear when scrolling screen.
• And the last, put your TextView inside NestedScrollView.

And this is full layout code (xml file):

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/main_content"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:focusableInTouchMode="true"
    android:fitsSystemWindows="true">

    <android.support.v4.widget.NestedScrollView
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <TextView
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:padding="@dimen/activity_horizontal_margin"
            android:text="@string/long_text" />
    </android.support.v4.widget.NestedScrollView>

    <android.support.design.widget.AppBarLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:theme="@style/ThemeOverlay.AppCompat.Dark">

        <android.support.v7.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:layout_height="?attr/actionBarSize"
            android:background="@color/colorPrimary"
            app:layout_scrollFlags="scroll|enterAlways"
            app:popupTheme="@style/ThemeOverlay.AppCompat.Light"
            app:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" />

        <RelativeLayout
            android:id="@+id/search_layout"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_below="@+id/toolbar"
            android:background="@color/colorPrimary"
            android:padding="@dimen/activity_horizontal_margin">

            <EditText
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:background="@drawable/corners"
                android:drawableLeft="@android:drawable/ic_menu_camera"
                android:drawablePadding="22dp"
                android:drawableRight="@android:drawable/ic_menu_search"
                android:gravity="left|center"
                android:hint="Type some text..."
                android:padding="10dp"
                android:textColorHint="@android:color/darker_gray" />
        </RelativeLayout>

    </android.support.design.widget.AppBarLayout>

</android.support.design.widget.CoordinatorLayout>

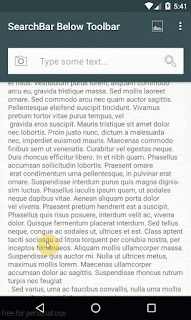

    You should change SearchView to EditText, it better compatibility with AppBarLayout. Running app, we have this output:
